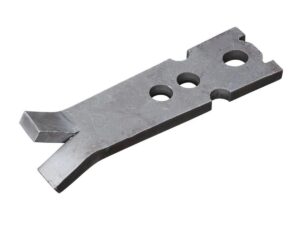

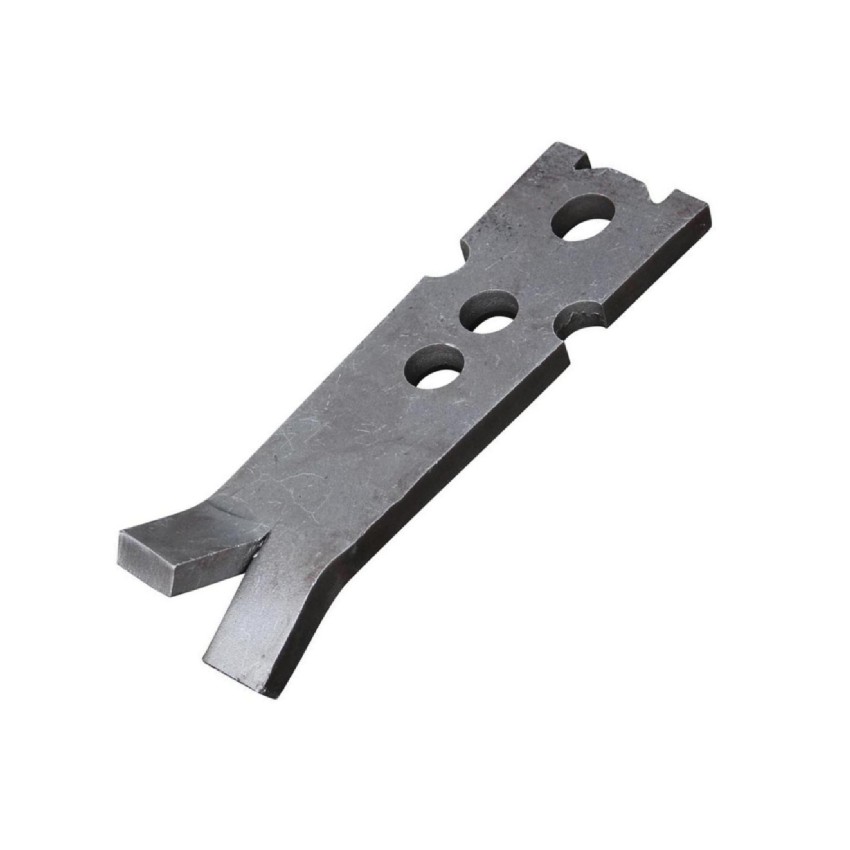

Erection Anchor – Safe Tilt-Up Lifting for Precast Concrete Panels

The erection anchor (also called a tilt-up anchor or precast panel anchor) is specially designed for the tilting, lifting, and positioning of thin or large precast concrete elements, such as wall panels and façade slabs. This anchor features a long shaft or tail that provides deep embedment and secure anchorage, making it ideal for vertical lifting and panel rotation on-site.

Made from high-strength forged steel, erection anchors are cast into the concrete and used with compatible lifting clutches or eye hooks to ensure fast, safe, and repeatable lifting operations. They are widely used in precast construction, modular buildings, tilt-up construction, and infrastructure projects where upright positioning is required.

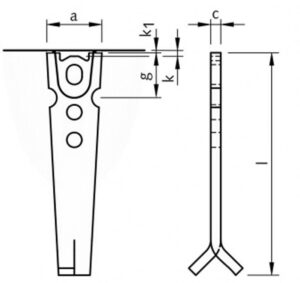

Technical Specifications

Custom design, length, and tail shape available upon request.

Key Features of Erection Anchor

• Designed for Tilt-Up Lifting: Specially engineered for lifting and rotating precast panels into vertical position

• Long Shaft for Deep Embedment: Provides enhanced pull-out resistance and load transfer

• Multiple Load Capacities: Available in 1.3T, 2.5T, 5T, 10T, and 20T load classes

• Forged or Cast Steel Construction: Durable, high-strength materials ensure safety and performance

• Corrosion-Resistant Finishes: Available in plain, zinc-plated, or hot-dip galvanized versions

• Secure and Efficient Installation: Designed to minimize cracking and damage during lifting

Applications of Erection Anchor

• Precast wall panel lifting

• Tilt-up construction of façade elements

• Lifting thin or tall concrete panels

• Precast column or slab erection

• Infrastructure tilt-up projects

How It Works:

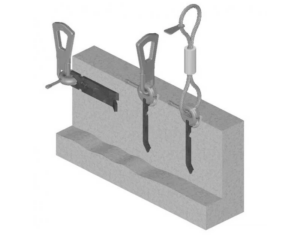

Erection anchors are embedded in the backside or edge of precast panels during casting. When the panel is ready to be lifted, a compatible lifting clutch or eye hook connects to the anchor head. The long tail or foot at the base of the anchor ensures safe load distribution and prevents concrete breakout during tilting or hoisting.

They are especially valuable in projects that require panels to be tilted from horizontal to vertical, a common process in modular and tilt-up construction.

Why Choose Us as Your Erection Anchor Supplier?

We are based in Qingdao, China, one of the country’s key industrial zones for rigging and construction hardware. With over a decade of experience in the lifting industry, we offer:

✔️ Stable and repeatable quality

✔️ Competitive direct pricing

✔️ Customization for different panel designs

✔️ Technical drawings and load data

✔️ Fast response and worldwide shipping

If you’re sourcing erection anchor or other precast concrete lifting systems, we’re ready to help. We offer OEM services and fast worldwide shipping. Request a quote today for competitive prices and high-quality support.
