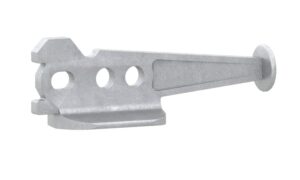

Forged Erection Anchor w/ Shear Plate
- Material: High-quality forged alloy steel
- Safety Factor: 3:1
- Size Range: Available in load capacities from 3T to 12T
- Finish: Plain finish, Electrogalvanized, Hot-dip galvanized
- Standard: Meets international safety and performance standards.
- Suitable for vertical, horizontal, or angled lifting.

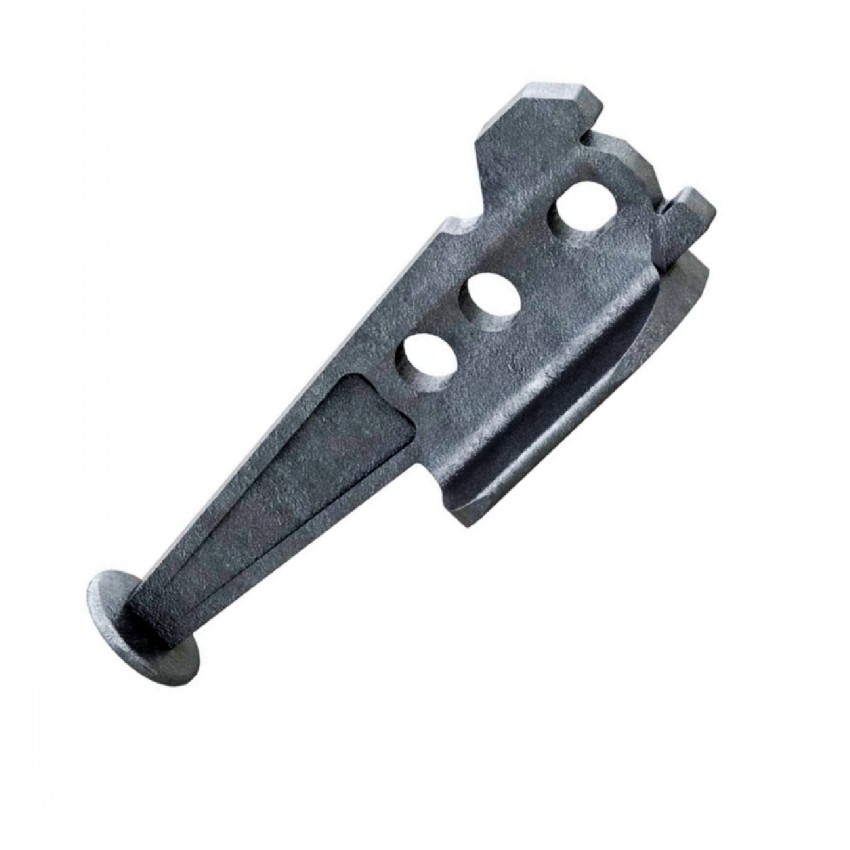

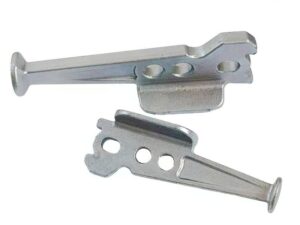

Forged Erection Anchor with Shear Plate – Reinforced Lifting for Precast Concrete Panels
The forged erection anchor with shear plate is a high-performance lifting solution used in precast panel erection, tilt-up construction, and vertical lifting applications. This anchor is forged from high-strength steel and includes a shear plate to enhance breakout resistance and distribute shear forces safely during panel tilting or lifting at an angle.
The shear plate is cast into the concrete surface and works in tandem with the anchor shaft to ensure stability, especially in thin panels or edge-near placements. Designed to work with lifting clutches or eye hooks, this anchor ensures safe, repeatable, and efficient lifting on any construction site.
Technical Specifications
| Anchor | Lifter | Length | Weight (kg) |
| 3T | 2-3T | 205 | 1.0 |
| 6T | 5-6T | 267 | 2.1 |
| 12T | 10-12T | 324 | 3.7 |
Custom lengths, tail shapes, or shear plate sizes are available on request.
Key Features
Forged for Superior Strength: Precision-forged steel construction for maximum tensile performance
Integrated Shear Plate: Enhances concrete breakout resistance and shear load distribution
Safe for Thin or Narrow Panels: Ideal for panel erection where concrete cover is limited
Reusable with Lifting Clutch: Works with standard lifting devices for fast and safe installation
Multiple Load Classes Available: Standard sizes include 3.0T, 6.0T, and 12.0T
Applications
Vertical and tilt-up lifting of precast concrete wall panels
Façade panels with thin concrete cross-sections
Precast structural systems requiring secure load transfer
Projects with tight edge distances or heavy shear forces
What Does the Shear Plate Do?
The shear plate is a steel plate positioned at the anchor head and cast flush with the concrete surface. It:
Helps distribute forces evenly
Prevents head breakout under angled lifting
Provides additional safety margin for thin or tall panels
Enhances anchor performance in tilting and edge lifting operations
It’s especially important when lifting loads at an angle, or when the anchor is placed near the edge of the concrete panel.
Why Choose Our Forged Erection Anchor with Shear Plate?
We supply premium precast lifting systems to clients worldwide. With over a decade of manufacturing and export experience, our benefits include:
✔️ Precision-forged steel with high consistency
✔️ Custom shear plate and anchor options
✔️ Factory-direct prices with fast production
✔️ Full QC and third-party testing available
✔️ Export-ready with technical drawings and documentation
Our Forged Erection Anchor with Shear Plate are part of a complete precast concrete lifting system and work together with our lifting clutches and other anchor types. If you are unsure which anchor suits your project, contact our team for guidance or explore our full range of lifting anchors including eye anchors, threaded anchors, and erection anchors.
We offer OEM services and fast worldwide shipping. Request a quote today for competitive prices and high-quality support. Contact us today to request a quote or discuss your sourcing needs.
