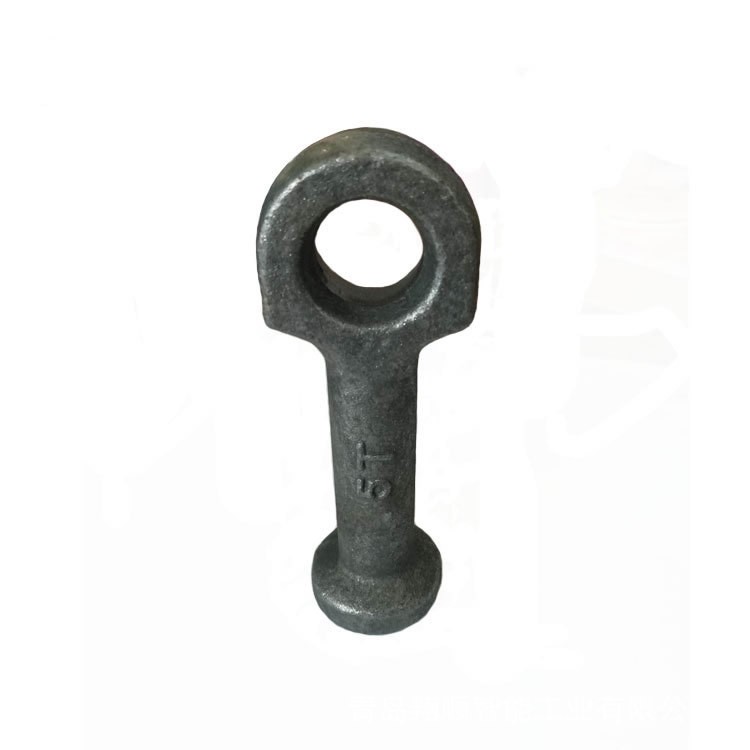

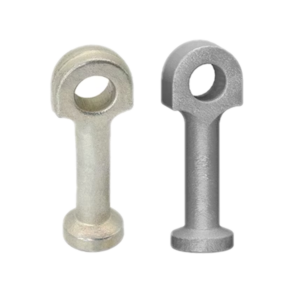

Lifting Eye Anchor (Dogbone) – Secure Lifting Solution for Precast Concrete

The lifting eye anchor, also called a dogbone anchor, is a trusted and widely used component in precast concrete lifting systems, particularly for the vertical lifting of thin precast panels, slabs, and blocks. Designed with a looped or “eye” head and a wide anchoring foot, the anchor provides strong load transfer while ensuring safe lifting during manufacturing, transportation, and on-site installation.

This anchor type is embedded directly into the concrete during casting. Once cured, it can be engaged by a lifting clutch or hook, forming a secure lifting point that complies with load-bearing safety requirements. It is an ideal solution for applications where minimal concrete cover or limited space requires a compact but high-strength anchor.

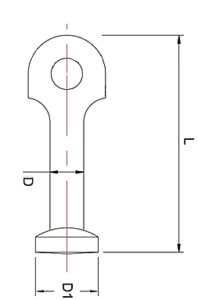

Technical Specifications

Custom sizes and special anchoring feet (such as rebar anchors) available upon request.

Key Features of Lifting Eye Anchor

• Eye Loop Design: Simple and strong, compatible with most lifting hooks or clutches

• Thin Panel Friendly: Ideal for lifting narrow or thin precast components

• High Load Bearing: Available from 1.3T to 20T+ load capacities

• Durable Material: Forged or cast steel with excellent tensile performance

• Multiple Surface Finishes: Plain, hot-dip galvanized, or zinc-plated for corrosion resistance

• Wide Application Use: Suitable for civil engineering, modular building, and infrastructure projects

Applications of Lifting Eye Anchor

• Vertical lifting of precast concrete walls and panels

• Handling of modular building elements

• Transportation of thin or narrow concrete units

• Temporary lifting points for molds or structures

• Projects with limited edge spacing

How It Works:

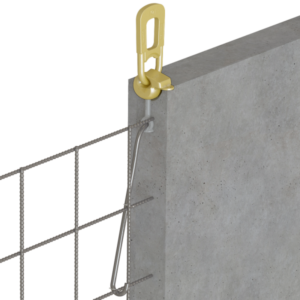

The lifting eye anchor is embedded into the concrete with its wide foot creating secure mechanical anchorage. After curing, the loop head is exposed and ready for lifting. A compatible lifting clutch or hook is used to connect to the eye, making the lifting process quick and secure.

Compared to threaded or spherical anchors, the eye anchor offers a simpler, all-in-one solution especially suited for lighter to medium weight elements and projects where ease of use is a priority.

Why Source from Us?

Located in Qingdao, we specialize in manufacturing rigging and precast lifting products with rich experience in the lifting industry. We provide:

✔️Factory-direct pricing

✔️ Stable quality and strict QC

✔️ OEM & customization services

✔️ On-time delivery

✔️ Support with technical data and certificates

Our lifting eye anchors are part of a complete precast concrete lifting system and work together with our lifting clutches and other anchor types. If you are unsure which anchor suits your project, contact our team for guidance or explore our full range of lifting anchors including eye anchors, threaded anchors, and erection anchors.

We offer OEM services and fast worldwide shipping. Request a quote today for competitive prices and high-quality support.

📧 Email: [email protected]
📞 WhatsApp : +86-18660236941

🔗 Related Products:

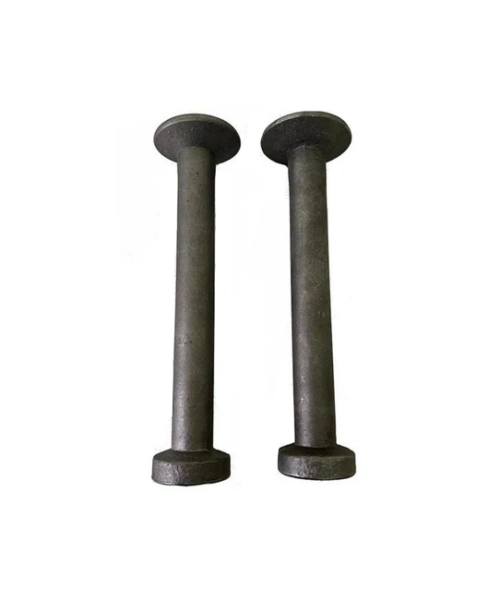

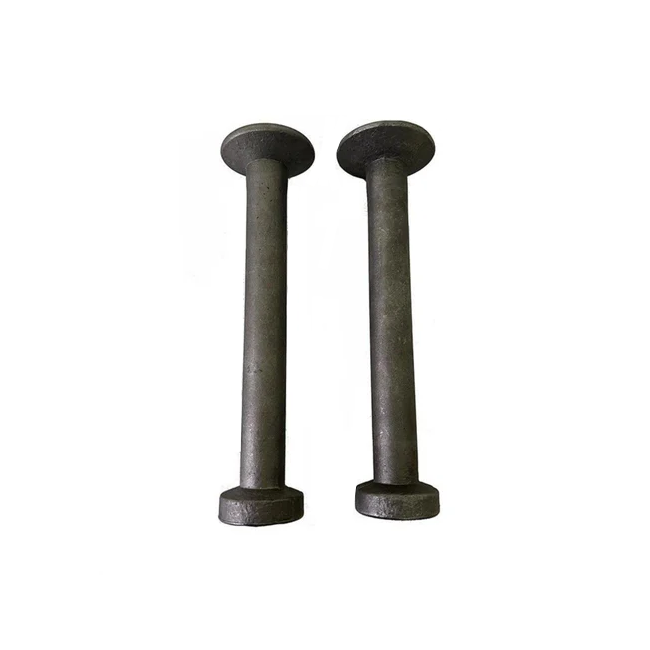

Spherical Head Lifting Anchor

Lifting Clutch for Precast Concrete

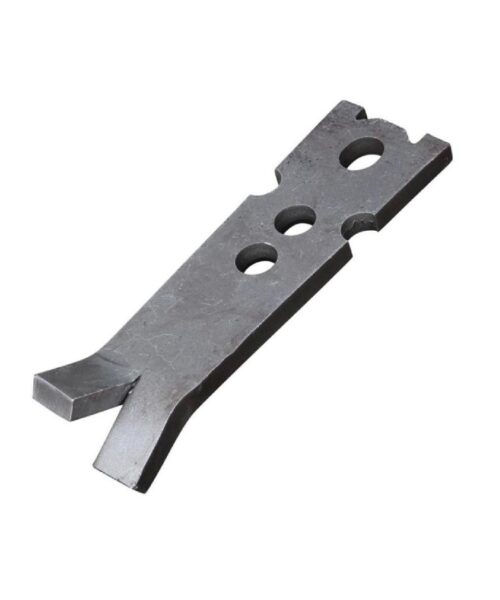

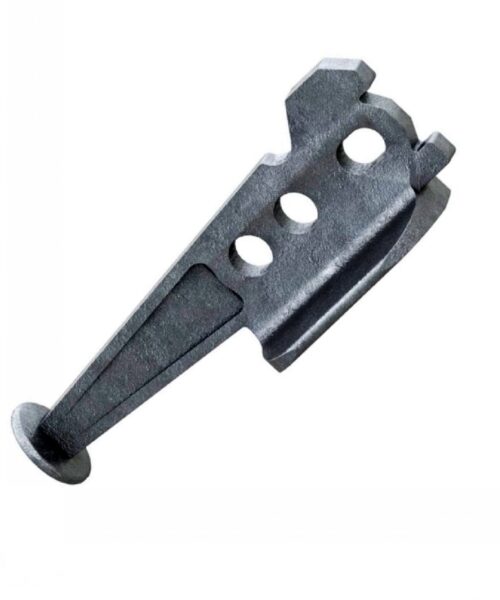

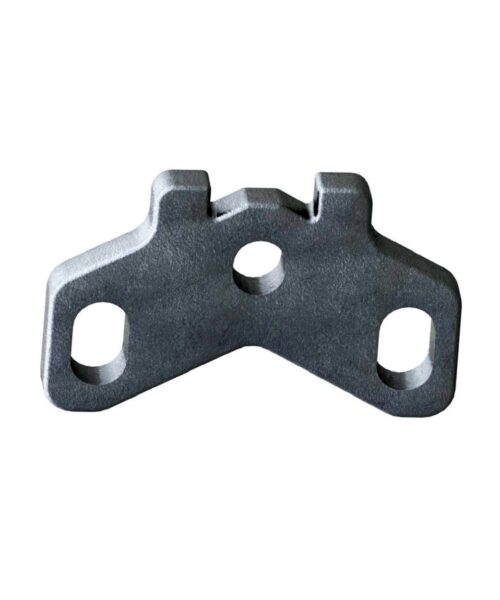

Erection Anchor for Precast Concrete Panels
