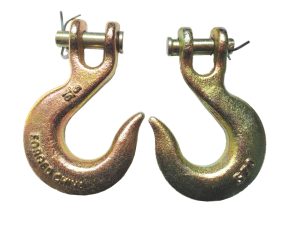

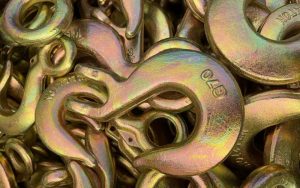

Clevis Slip Hook Grade 70 Zinc-Plated A331
Part No. | Weightlbs | WLL (lbs) | A±0.5(mm) | B±1(mm) | E±0.5(mm) | L±1(mm) |
G70 | ||||||
1/4” | 0.55 | 2750 | 11 | 27 | 23.5 | 100 |
5/16” | 0.82 | 4300 | 12.5 | 33 | 26 | 114 |
3/8” | 1.21 | 5250 | 15 | 39 | 32 | 132.5 |
7/16” | 2.09 | 7000 | 17 | 44 | 40 | 147 |
1/2” | 2.99 | 9000 | 19 | 48 | 42.5 | 166 |
5/8” | 4.85 | 13500 | 18.5 | 58.7 | 51 | 200.5 |
3/4” | 11.28 | 19250 | 30.5 | 81 | 64.5 | 257 |
Designed to allow chain to slip through the hook. Use on Grade 43 High Test or lower grade chain.
This slip hook includes a safety gate.
- Allows a chain to easily slip through the hook
- Includes a safety gate for added security
- Use on Grade 43 High Test or lower grade chain
- Do not exceed the working load limit.
- Not to be used for overhead lifting.
- Make sure the hook size and chain diameter are compatible before attaching to load.
