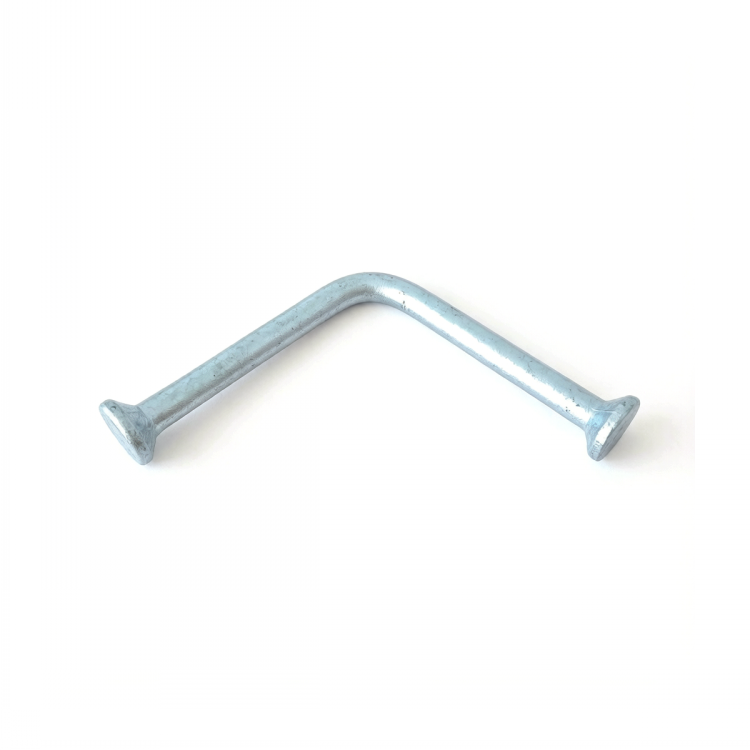

Utility Lift Anchor for Precast Concrete

Material: High-Strength Steel
Surface Treatment: Galvanized / Untreated (customizable)
Load Capacities: Available in multiple grades (based on project requirements)
Compatibility: Standard lifting clutch systems
Application: Lifting, handling, and transportation of precast concrete elements

Send Inquiry

Category: Precast Concrete Lifting Systems Tag: Precast Concrete Lifting Systems

Description

Heavy-Duty Utility Lift Anchor for Precast Concrete

High-Performance Utility Lift Anchor for Safe Precast Concrete Handling

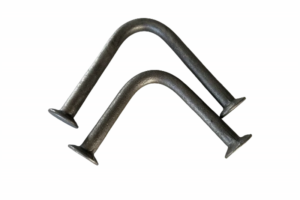

The Utility Lift Anchor for Precast Concrete (also universally known as the Double-Headed lifting anchor, V lifting anchor or bend pin anchor) for safe handling, transportation, and installation of precast concrete elements. Engineered from top-grade steel, this versatile anchor features a distinctive arched or bent rod configuration with hot-forged, full-diameter spherical heads on both ends. Engineered for strength and durability, it provides a secure lifting point that ensures stability and safety throughout the entire lifting process.

Unlike specialized pin or spread systems that require dedicated, proprietary mechanical lifting clutches, the Utility Lift Anchor provides a large, accessible radius that allows standard, everyday wire rope lifting loops, heavy-duty shackles, or crane hooks to engage directly. It is the go-to wholesale solution for precast yards manufacturing concrete pipes, utility vaults, retaining walls, manholes, and massive concrete barriers.

Key Features

Dual-Headed High Anchor Efficiency: The symmetric, dual-headed design creates a massive, balanced concrete failure cone inside the cured element. Both forged feet anchor independently, delivering excellent pulling resistance even in thin-walled or shallow embedment scenarios.
Universal Compatibility (Clutch-Free Lifting): Eliminates the need to buy and track expensive, easily misplaced lifting clutches. The smooth, curved apex of the Utility Lift Anchor accepts standard flexible wire rope slings or rigging shackles instantly on the construction site.
Superior Hot-Forging Construction: Manufactured using state-of-the-art forging lines to ensure the double-headed feet share a continuous steel grain structure with the rod body, optimizing safety factor ratios and preventing brittleness.
Cost-Efficient Volumetric Production: Because of its highly efficient fabrication process compared to complex multi-hole flat steel plates, this anchor provides a massive cost savings for high-volume precasters looking to cut hardware overhead.
Durable Anti-Corrosion Finishes: Available in Plain Steel (for immediate deep casting), Electro-Galvanized (Zinc Plated), or Heavy Hot-Dip Galvanized (HDG) versions to withstand extreme seasonal weather and salty, high-humidity storage environments.

Technical Specifications

Our Utility Lift Anchor series is manufactured in compliance with rigorous global industrial safety factor standards, ensuring structural integrity under peak dynamic loads during stripping, tilting, and turning operations.

Rated Load Capacity (Tons)	Total Height / Length (mm)	Rod/Wire Diameter (mm)	Recommended Minimum Concrete Strength	Typical Application Fields
1.25 Ton	120mm / 175mm	Ø 10mm	≥ 15 MPa	Small pipes, concrete weights, utility boxes
2.50 Ton	180mm / 225mm	Ø 14mm	≥ 15 MPa	Medium utility vaults, small retaining blocks
5.00 Ton	240mm / 270mm	Ø 20mm	≥ 20 MPa	Heavy box culverts, tilt-up slabs, highway barriers
10.00 Ton	300mm / 350mm	Ø 26mm	≥ 25 MPa

Customization Notice: As an established supplier of concrete accessories, we provide full OEM and custom dimension support. If your regional design drawings call for specific arched angles, extra rod lengths, or custom load-grade markings, our technical department can forge them precisely to your blueprints.

How It Works (Application Guide)

Formwork Positioning: Place the Utility Lift Anchor into your steel or wooden mold. The curved apex must point upward toward the finished surface, while the double heads face downward into the deep structural zone.

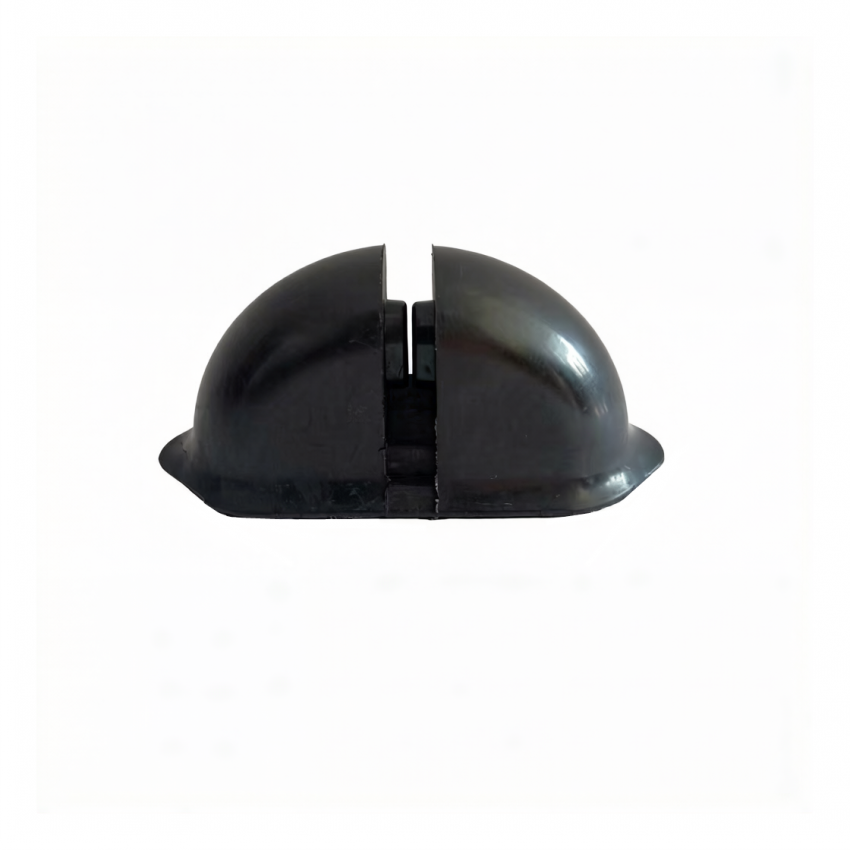

Securing the Recess: Mount a standard semi-spherical rubber or plastic recess former over the top curve to create a temporary, clean pocket inside the concrete during pouring.
Pouring & Vibration: Cast the concrete slurry. Ensure the vibration process fully consolidates the aggregate around both forged feet of the anchor to ensure 100% mechanical anchorage.

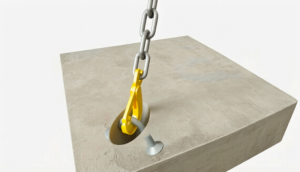

Stripping & Lifting: Once cured, pop off the formwork and remove the reusable recess former. The curved steel apex is now fully accessible within a protective recess. Simply loop your crane’s wire rope sling or secure a shackle directly onto the anchor to lift the piece.

Why Choose Our Utility Lift Anchors?

As a professional manufacturer of precast concrete lifting systems, we supply high-quality Utility Lift Anchors designed for strength, reliability, and long service life. Our products meet the demanding requirements of global precast concrete manufacturers and construction projects.

We offer consistent quality control, competitive pricing, and OEM/ODM customization to support your engineering and production needs.

Frequently Asked Questions (FAQs) for Procurement Teams

Q1: Can the Utility Lift Anchor be reused after the precast element is set?

No. This anchor is an embedded component, meaning it remains permanently cast inside the concrete element for its entire operational lifecycle. However, the crane-side flexible lifting loops and standard shackles used to hook onto it can be reused indefinitely.

Q2: Does your factory supply the matching recess formers for this specific anchor?

Yes. We supply the complete loop. We manufacture both the heavy-duty reusable Rubber Recess Formers and lightweight plastic pocket formers tailored specifically to match the profile of each Utility Lift Anchor load rating.

Q3: What material certificates do you provide for international customs and engineering approvals?

We supply full mill material test certificates (MTC) indicating exact chemical composition and mechanical properties, alongside standard internal load test and batch breaking strength reports.

Request a Quote

Looking for a reliable supplier of Utility Lift Anchors for your precast concrete projects?

Contact us today for pricing, technical drawings, samples, or bulk order inquiries. Our engineering team will help you select the right lifting solution for your application.
