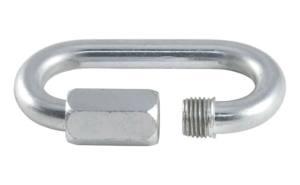

Quick Link, Rapid Links Zinc Plated/Stainless Steel 316/304
SS304-OR-SS316-Steel-Electric-Galvanized
Size: 3.5-16
Quick Link, Rapid Links Zinc Plated/Stainless Steel 316/304
Specifications

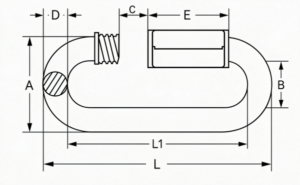

| STANDARD QUICK LINKS | ||||||||
| SIZE | A | B | C | D | L | L1 | E | WEIGHT |
| MM | MM | MM | MM | MM | MM | MM | MM | KG/100PCS |
| 3.5 | 17 | 10 | 5 | 3.5 | 36 | 29 | 11 | 0.8 |
| 4 | 19.5 | 11.5 | 5.5 | 4 | 39.5 | 31.5 | 12.5 | 1.2 |
| 5 | 23 | 13 | 6.5 | 5 | 48.5 | 35.5 | 16 | 2.1 |
| 6 | 26.5 | 14.5 | 7.5 | 6 | 57 | 45 | 19 | 3.5 |
| 7 | 30 | 16 | 8.5 | 7 | 66 | 52 | 21.5 | 5.45 |
| 8 | 33.5 | 17.5 | 10.5 | 8 | 74 | 58 | 24 | 7.5 |
| 9 | 37 | 19 | 11 | 9 | 80 | 62 | 26 | 10.5 |
| 10 | 40.5 | 20.5 | 12 | 10 | 89 | 69 | 29 | 13.5 |
| 12 | 47.5 | 23.5 | 15 | 12 | 104.5 | 80.5 | 33 | 22.8 |
| 14 | 54.5 | 26.5 | 17 | 14 | 121 | 93 | 38.5 | 35 |
| 16 | 61.5 | 29.5 | 19 | 16 | 140 | 108 | 45 | 50 |
